Forged Flange ANSI B16.5 ASME B16.47 ASTM A105 150 LBS 300 LBS Black Painting

Brand Name : XF

Model Number : 1/2"-72"

Certification : ISO9001 , PED AND AD2000 W0 ,MTC WITH EN 10204-3.1 Forma

Place of Origin : CHINA

MOQ : 1PCS

Price : USD 1-100 One PCS

Payment Terms : L/C, T/T, D/P, Western Union

Supply Ability : 1500Tons One Month

Delivery Time : 15-30DAYS

Packaging Details : PLYWOODEN AND PALLET

Produce method : Forged

Material : Carbon Steel and Stainless steel

Size : 1/2"-72"

Pressure : 125lbs ,150lbs, 300lbs ,400lbs, 600lbs ,900lbs ,1500lbs and 2500lbs

Flange Type : Welding Neck , Slip On , Blind , Socket Welding, Lap jont and Threaded Flange

Coating : Black Paint , Yellow Paint , Hot Galvanized , Cold Galvanized and Oil

Surface : RAISED FACE , FLAT FACE AND RING JOINT

THREADED TYPE : NPT

Thickness : STD , SCH10, SCH20, SCH30 ,SCH40, XS,SCH80, SCH100, SCH120 ,SCH160

Contact Now

FORGED FLANGE ASME B16.5 &ASME B16.47

Forged Flange ANSI B16.5 &ASME B16.47 ASTM A105 150LBS 300LBS Welding Neck With Black Painting

Material: Carbon Steel ASTM A105/A105N; A694 F42-F70;A-350 LF1/LF2;

Stainless Steel ASTM A182 F304/304L,F316/316L F321 F51

Alloy Steel ASTM A182 F11/F12 /F22

Produce Method: Forged

Flange Type:Welding Neck , Slip On , Blind , Socket Welding, Lap jont and Threaded Flange

Pressure :125lbs ,150lbs, 300lbs ,400lbs, 600lbs ,900lbs ,1500lbs and 2500lbs

Size Range:1/2"-72"

Thickness: SCH10, SCH20, SCH30 ,STD ,SCH40, XS,SCH80, SCH100, SCH120 ,SCH160

Surface :Raised Face(RF), Flat Face(FF), Ring Joint(RTJ)

Threaded Type:NPT and BSP

Marking:XF ASME B16.5/ ASME B16.47 Pressure Material Size RXX Thickness Heat No.

Coating:Black Paint , Yellow Paint , Hot Galvanized , Cold Galvanized and Oil

Certificates:ISO 9001, PED , AD2000 W0 , MTC WITH EN 10204-3.1 Forma

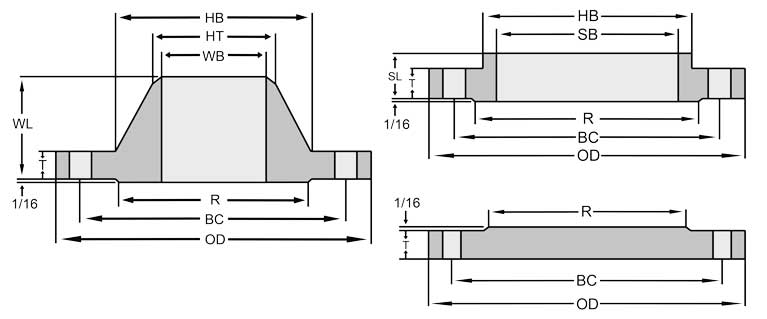

ANSI B16.5 Flanges Dimensions

ASME B16.5 Class 150 Dimensions in MM

Forged Flange ANSI B16.5 ASME B16.47 ASTM A105 150 LBS 300 LBS Black Painting

Nominal Size	Outside Diameter (OD)	Min. Thickness (T)	RF Dia. (R)	No. of Bolt Holes	Diameter of Holes	Bolt Circle (BC)	SO Bore ID (SB)	WN Bore ID (WB)	Dia. Hub Base (HB)	Dia. of Hub Top (HT)	SO LTH (SL)	WN LTH (WL)
1⁄2	3.50	0.38	1.38	4	0.62	2.38	0.88	0.62	1.19	0.84	0.56	1.81
3⁄4	3.88	0.44	1.69	4	0.62	2.75	1.09	0.82	1.50	1.05	0.56	2.00
1	4.25	0.50	2.00	4	0.62	3.12	1.36	1.05	1.94	1.32	0.62	2.12
11⁄4	4.62	0.56	2.50	4	0.62	3.50	1.70	1.38	2.31	1.66	0.75	2.19
11⁄2	5.00	0.62	2.88	4	0.62	3.88	1.95	1.61	2.56	1.90	0.81	2.38
2	6.00	0.69	3.62	4	0.75	4.75	2.44	2.07	3.06	2.38	0.94	2.44
21⁄2	7.00	0.81	4.12	4	0.75	5.50	2.94	2.47	3.56	2.88	1.06	2.69
3	7.50	0.88	5.00	4	0.75	6.00	3.57	3.07	4.25	3.50	1.12	2.69
31⁄2	8.50	0.88	5.50	8	0.75	7.00	4.07	3.55	4.81	4.00	1.19	2.75
4	9.00	0.88	6.19	8	0.75	7.50	4.57	4.03	5.31	4.50	1.25	2.94
5	10.00	0.88	7.31	8	0.88	8.50	5.66	5.05	6.44	5.56	1.38	3.44
6	11.00	0.94	8.50	8	0.88	9.50	6.72	6.07	7.56	6.63	1.50	3.44
8	13.50	1.06	10.62	8	0.88	11.75	8.72	7.98	9.69	8.63	1.69	3.94
10	16.00	1.12	12.75	12	1.00	14.25	10.88	10.02	12.00	10.75	1.88	3.94
12	19.00	1.19	15.00	12	1.00	17.00	12.88	12.00	14.38	12.75	2.12	4.44
14	21.00	1.31	16.25	12	1.12	18.75	14.14	13.25	15.75	14.00	2.19	4.94
16	23.50	1.38	18.50	16	1.12	21.25	16.16	15.25	18.00	16.00	2.44	4.94
18	25.00	1.50	21.00	16	1.25	22.75	18.18	17.25	19.88	18.00	2.62	5.44
20	27.50	1.62	23.00	20	1.25	25.00	20.20	19.25	22.00	20.00	2.81	5.62
22	29.50	1.75	25.25	20	1.38	27.25	22.22	21.25	24.25	22.00	3.07	5.82
24	32.00	1.81	27.25	20	1.38	29.50	24.25	23.25	26.12	24.00	3.19	5.94

DIMENSIONS ARE IN INCHES
Bolt hole diameter 1/8" larger than bolt diameter

ANSI B16.5 Class 300 Flange Dimensions, ASME B16.5 Class 300 Flange Dimensions in mm

Nominal Size	Outside Diameter (OD)	Min. Thickness (T)	RF Dia. (R)	No. of Bolt Holes	Diameter of Holes	Bolt Circle (BC)	SO Bore ID (SB)	WN Bore ID (WB)	Dia. Hub Base (HB)	Dia. Hub Top (HT)	SO LTH (SL)	WN LTH (WL)
1⁄2	3.75	0.50	1.38	4	0.63	2.62	0.88	0.62	1.50	0.84	0.81	2.00
3⁄4	4.62	0.56	1.69	4	0.75	3.25	1.09	0.82	1.88	1.05	0.94	2.19
1	4.88	0.62	2.00	4	0.75	3.50	1.36	1.05	2.12	1.32	1.00	2.38
11⁄4	5.25	0.69	2.50	4	0.75	3.88	1.70	1.38	2.50	1.66	1.00	2.50
11⁄2	6.12	0.75	2.88	4	0.88	4.50	1.95	1.61	2.75	1.90	1.13	2.63
2	6.50	0.81	3.62	8	0.75	5.00	2.44	2.07	3.31	2.38	1.25	2.69
21⁄2	7.50	0.94	4.12	8	0.88	5.88	2.94	2.47	3.94	2.88	1.44	2.94
3	8.25	1.06	5.00	8	0.88	6.62	3.57	3.07	4.62	3.50	1.63	3.06
31⁄2	9.00	1.12	5.50	8	0.88	7.25	4.07	3.55	5.25	4.00	1.69	3.13
4	10.00	1.19	6.19	8	0.88	7.88	4.57	4.03	5.75	4.50	1.82	3.32
5	11.00	1.31	7.31	8	0.88	9.25	5.66	5.05	7.00	5.56	1.94	3.82
6	12.50	1.38	8.50	12	0.88	10.62	6.72	6.07	8.12	6.63	2.00	3.82
8	15.00	1.56	10.62	12	1.00	13.00	8.72	7.98	10.25	8.63	2.38	4.32
10	17.50	1.81	12.75	16	1.12	15.25	10.88	10.02	12.62	10.75	2.56	4.56
12	20.50	1.94	15.00	16	1.25	17.75	12.88	12.00	14.75	12.75	2.82	5.06
14	23.00	2.06	16.25	20	1.25	20.25	14.14	13.25	16.75	14.00	2.94	5.56
16	25.50	2.19	18.50	20	1.38	22.50	16.16	15.25	19.00	16.00	3.19	5.69
18	28.00	2.31	21.00	24	1.38	24.75	18.18	17.25	21.00	18.00	3.44	6.19
20	30.50	2.44	23.12	24	1.38	27.00	20.20	19.25	23.12	20.00	3.69	6.32
22	33.00	2.57	25.25	24	1.63	29.25	22.22	21.25	25.25	22.00	3.93	6.43
24	36.00	2.69	27.62	24	1.63	32.00	24.25	23.25	27.62	24.00	4.13	6.56

* For flanges type 21 the outside hub diameter approximately corresponds to the outside pipe diameter.
Note : The p/t rating from ASME B16.5 apply only for flange type 05, 11, 12, 13 and 21 having nominal sizes up to and including DN 600. The p/t rating of all other flanges shall be agreed between the manufacturer and the purchaser.

ANSI B16.5 Class 400 Flange Dimensions

Nominal Size	Outside Diameter (OD)	Min. Thickness (T)	RF Dia. (R)	No. of Bolt Holes	Diameter of Holes	Bolt Circle (BC)	SO Bore ID (SB)	Dia. Hub Base (HB)	Dia. Hub Top (HT)	SO LTH (SL)	WN LTH (WL)	* WN Bore ID (WB)
1⁄2	3.75	0.56	1.38	4	0.63	2.62	0.88	1.5	0.84	0.88	2.06	*
3⁄4	4.62	0.62	1.69	4	0.75	3.25	1.09	1.88	1.05	1.00	2.25	*
1	4.88	0.69	2.00	4	0.75	3.50	1.36	2.12	1.32	1.06	2.44	*
11⁄4	5.25	0.81	2.50	4	0.75	3.88	1.70	2.50	1.66	1.12	2.62	*
11⁄2	6.12	0.88	2.88	4	0.88	4.50	1.95	2.75	1.90	1.25	2.75	*
2	6.50	1.00	3.62	8	0.75	5.00	2.44	3.31	2.38	1.44	2.88	*
21⁄2	7.50	1.12	4.12	8	0.88	5.88	2.94	3.94	2.88	1.62	3.12	*
3	8.25	1.25	5.00	8	0.88	6.62	3.57	4.62	3.50	1.81	3.25	*
31⁄2	9.00	1.38	5.50	8	1.00	7.25	4.07	5.25	4.00	1.94	3.38	*
4	10.00	1.38	6.19	8	1.00	7.88	4.57	5.75	4.50	2.00	3.50	*
5	11.00	1.50	7.31	8	1.00	9.25	5.66	7.00	5.56	2.12	4.00	*
6	12.50	1.62	8.50	12	1.00	10.62	6.72	8.12	6.63	2.25	4.06	*
8	15.00	1.88	10.62	12	1.12	13.00	8.72	10.25	8.63	2.69	4.62	*
10	17.50	2.12	12.75	16	1.25	15.25	10.88	12.62	10.75	2.88	4.88	*
12	20.50	2.25	15.00	16	1.38	17.75	12.88	14.75	12.75	3.12	5.38	*
14	23.00	2.38	16.25	20	1.38	20.25	14.14	16.75	14.00	3.31	5.88	*
16	25.50	2.50	18.50	20	1.50	22.50	16.16	19.00	16.00	3.69	6.00	*
18	28.00	2.62	21.00	24	1.50	24.75	18.18	21.00	18.00	3.88	6.50	*
20	30.50	2.75	23.12	24	1.62	27.00	20.20	23.12	20.00	4.00	6.62	*
22	33.00	2.88	25.25	24	1.75	29.25	22.22	25.25	22.00	4.25	6.75	*
24	36.00	3.00	27.25	24	1.88	32.00	24.25	27.62	24.00	4.50	6.88	*

Bolt hole diameter 1/8" larger than bolt diameter

ANSI B16.5 Class 600 Flange Dimensions, ASME B16.5 Class 600 Blind Flange Dimensions

Nominal Size	Outside Diameter (OD)	Min. Thickness (T)	RF Dia. (R)	No. of Bolt Holes	Diameter of Holes	Bolt Circle (BC)	SO Bore ID (SB)	Dia. Hub Base (HB)	Dia. Hub Top (HT)	SO LTH (SL)	WN LTH (WL)	* WN Bore ID (WB)
1⁄2	3.75	0.56	1.38	4	0.63	2.62	0.88	1.50	0.84	0.88	2.06	*
3⁄4	4.62	0.62	1.69	4	0.75	3.25	1.09	1.88	1.05	1.00	2.25	*
1	4.88	0.69	2.00	4	0.75	3.50	1.36	2.12	1.32	1.06	2.44	*
11⁄4	5.25	0.81	2.50	4	0.75	3.88	1.70	2.50	1.66	1.12	2.62	*
11⁄2	6.12	0.88	2.88	4	0.88	4.50	1.95	2.75	1.90	1.25	2.75	*
2	6.50	1.00	3.62	8	0.75	5.00	2.44	3.31	2.38	1.44	2.88	*
21⁄2	7.50	1.12	4.12	8	0.88	5.88	2.94	3.94	2.88	1.62	3.12	*
3	8.25	1.25	5.00	8	0.88	6.62	3.57	4.62	3.50	1.81	3.25	*
31⁄2	9.00	1.38	5.50	8	1.00	7.25	4.07	5.25	4.00	1.94	3.38	*
4	10.75	1.50	6.19	8	1.00	8.50	4.57	6.00	4.50	2.12	4.00	*
5	13.00	1.75	7.31	8	1.12	10.50	5.66	7.44	5.56	2.38	4.50	*
6	14.00	1.88	8.50	12	1.12	11.50	6.72	8.75	6.63	2.62	4.62	*
8	16.50	2.19	10.62	12	1.25	13.75	8.72	10.75	8.63	3.00	5.25	*
10	20.00	2.50	12.75	16	1.38	17.00	10.88	13.50	10.75	3.38	6.00	*
12	22.00	2.62	15.00	20	1.38	19.25	12.88	15.75	12.75	3.62	6.12	*
14	23.75	2.75	16.25	20	1.50	20.75	14.14	17.00	14.00	3.69	6.50	*
16	27.00	3.00	18.50	20	1.63	23.75	16.16	19.50	16.00	4.19	7.00	*
18	29.25	3.25	21.00	20	1.75	25.75	18.18	21.50	18.00	4.62	7.25	*
20	32.00	3.50	23.00	24	1.75	28.50	20.20	24.00	20.00	5.00	7.50	*
22	34.25	3.75	25.25	24	1.88	30.63	22.22	26.25	22.00	5.25	7.75	*
24	37.00	4.00	27.25	24	2.00	33.00	24.25	28.25	24.00	5.50	8.00	*

ANSI B16.5 Class 900 Flange Dimenisons

Nominal Size	Outside Diameter (OD)	Min. Thickness (T)	RF Dia. (R)	No. of Bolt Holes	Diameter of Holes	Bolt Circle (BC)	SO Bore ID (SB)	* WN Bore ID (WB)	Dia. Hub Base (HB)	Dia. Hub Top (HT)	SO LTH (SL)	WN LTH (WL)
3	9.50	1.50	5.00	8	1.00	7.50	3.57	*	5.00	3.50	2.12	4.00
4	11.50	1.75	6.19	8	1.25	9.25	4.57	*	6.25	4.50	2.75	4.50
5	13.75	2.00	7.31	8	1.38	11.00	5.66	*	7.50	5.56	3.12	5.00
6	15.00	2.19	8.50	12	1.25	12.50	6.72	*	9.25	6.63	3.38	5.50
8	18.50	2.50	10.63	12	1.50	15.50	8.72	*	11.75	8.63	4.00	6.38
10	21.50	2.75	12.75	16	1.50	18.50	10.88	*	14.50	10.75	4.25	7.25
12	24.00	3.12	15.00	20	1.50	21.00	12.88	*	16.50	12.75	4.63	7.88
14	25.25	3.38	16.25	20	1.63	22.00	14.14	*	17.75	14.00	5.12	8.38
16	27.75	3.50	18.50	20	1.75	24.25	16.16	*	20.00	16.00	5.25	8.50
18	31.00	4.00	21.00	20	2.00	27.00	18.18	*	22.25	18.00	6.00	9.00
20	33.75	4.25	23.00	20	2.13	29.50	20.20	*	24.50	20.00	6.25	9.75
24	41.00	5.50	27.25	20	2.63	35.50	24.25	*	29.50	24.00	8.00	11.50

ANSI B16.5 Class 1500 Flange Dimenisons

Nominal Size	Outside Diameter (OD)	Min. Thickness (T)	RF Dia. (R)	No. of Bolt Holes	Diameter of Holes	Bolt Circle (BC)	So Bore ID (SB)	Dia. Hub Base (HB)	Dia. Hub Top (HT)	SO LTH (SL)	WN LTH (WL)	* WN Bore ID (WB)
1⁄2	4.75	0.88	1.38	4	0.88	3.25	0.88	1.50	0.84	1.25	2.38	*
3⁄4	5.12	1.00	1.69	4	0.88	3.50	1.09	1.75	1.05	1.38	2.75	*
1	5.88	1.12	2.00	4	1.00	4.00	1.36	2.06	1.32	1.62	2.88	*
11⁄4	6.25	1.12	2.50	4	1.00	4.38	1.70	2.50	1.66	1.62	2.88	*
11⁄2	7.00	1.25	2.88	4	1.12	4.88	1.95	2.75	1.90	1.75	3.25	*
2	8.50	1.50	3.63	8	1.00	6.50	2.44	4.12	2.38	2.25	4.00	*
21⁄2	9.62	1.62	4.13	8	1.12	7.50	2.94	4.88	2.88	2.50	4.12	*
3	10.50	1.88	5.00	8	1.25	8.00	-	5.25	3.50	-	4.62	*
4	12.25	2.12	6.19	8	1.38	9.50	-	6.38	4.50	-	4.88	*
5	14.75	2.88	7.31	8	1.63	11.50	-	7.75	5.56	-	6.12	*
6	15.50	3.25	8.50	12	1.50	12.50	-	9.00	6.63	-	6.75	*
8	19.00	3.62	10.63	12	1.75	15.50	-	11.50	8.63	-	8.38	*
10	23.00	4.25	12.75	12	2.00	19.00	-	14.50	10.75	-	10.00	*
12	26.50	4.88	15.00	16	2.12	22.50	-	17.75	12.75	-	11.12	*
14	29.50	5.25	16.25	16	2.38	25.00	-	19.50	14.00	-	11.75	*
16	32.50	5.75	18.50	16	2.63	27.75	-	21.75	16.00	-	12.25	*
18	36.00	6.38	21.00	16	2.88	30.50	-	23.50	18.00	-	12.88	*
20	38.75	7.00	23.00	16	3.12	32.75	-	25.25	20.00	-	14.00	*
24	46.00	8.00	27.25	16	3.63	39.00	-	30.00	24.00	-	16.00	*

ASME B16.5 Class 2500 Flange Dimenisons

Nominal Size	Outside Diameter (OD)	Min. Thickness (T)	RF Dia. (R)	No. of Bolt Holes	Diameter of Holes	Bolt Circle (BC)	Dia. Hub Base (HB)	Dia. Hub Top (HT)	SO LTH (SL)	WN LTH (WL)	* WN Bore ID (WB)
1⁄2	5.25	1.19	1.38	4	0.88	3.50	1.69	0.84	1.56	2.88	*
3⁄4	5.50	1.25	1.69	4	0.88	3.75	2.00	1.05	1.69	3.12	*
1	6.25	1.38	2.00	4	1.00	4.25	2.25	1.32	1.88	3.50	*
11⁄4	7.25	1.50	2.50	4	1.12	5.13	2.88	1.66	2.06	3.75	*
11⁄2	8.00	1.75	2.88	4	1.25	5.75	3.12	1.90	2.38	4.38	*
2	9.25	2.00	3.63	8	1.12	6.75	3.75	2.38	2.75	5.00	*
21⁄2	10.50	2.25	4.13	8	1.25	7.75	4.50	2.88	3.12	5.62	*
3	12.00	2.62	5.00	8	1.38	9.00	5.25	3.50	-	6.62	*
4	14.00	3.00	6.19	8	1.63	10.75	6.50	4.50	-	7.50	*
5	16.50	3.62	7.31	8	1.88	12.75	8.00	5.56	-	9.00	*
6	19.00	4.25	8.50	8	2.12	14.50	9.25	6.63	-	10.75	*
8	21.75	5.00	10.63	12	2.12	17.25	12.00	8.63	-	12.50	*
10	26.50	6.50	12.75	12	2.63	21.25	14.75	10.75	-	16.50	*
12	30.00	7.25	15.00	12	2.88	24.38	17.38	12.75	-	18.25	*

Forged Flange ANSI B16.5 ASME B16.47 ASTM A105 150 LBS 300 LBS Black Painting

Contact:

Sales Manager: Annie

HEBEI XINFENG HIGH-PRESSURE FLANGE AND PIPE FITTING CO.,LTD.

Add.: Mencun County,Cangzhou City,Hebei province,China 061400

Mobile:86 18031772012 (wechat, whatsapp)

Tel: 86-317-6016612

Email: info3@hbxfgj.com

Skype: annie1989723

QQ:532326446

FAQ:

1. What is your MOQ?
Normally our MOQ for each size is 1ton. If you think it is too much, we can discuss according to your requirement in details.
2. Can you offer free sample?
Yes, we can provide free samples of 150m - 200m.
3. What is your delivery time?
We will deliver in 30-35days
4. Can you accept mixed products in one container?
Yes, we accept for sure.

Product Tags:
